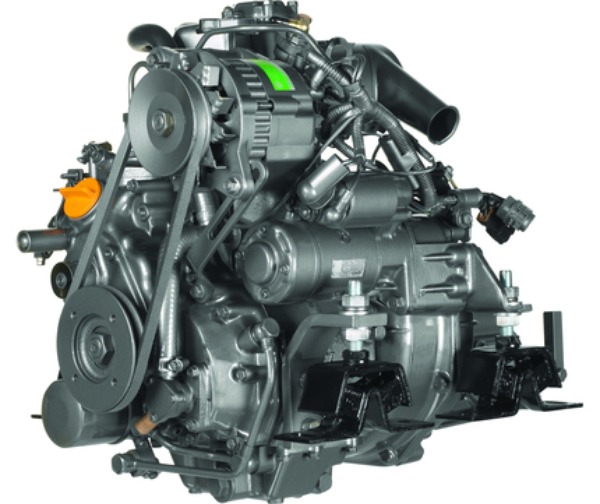

1GM10
| Power HP | 6.6 kW / 9 mhp |
|---|---|
| RPM | 3600 rpm |
| Displacement | 0.318 L [19.41 cu in] |
| Number of cylinders | 1 in line |
| Cylinder borehole and gait | 75 mm x 72 mm |
| Engine type | 4-stroke, vertical, water cooled diesel engine |
| Compliance with gas emission measures | EU: RCD 2, BSO II, EMC. US: EPA Tier 2. |
| Guarantee | 2 + 3 year extended warranty |
| Price |
Send inquiry
|
Documents
| OPERATION MANUAL 1GM10 |
Download
|
| OPERATION MANUAL SAILDRIVE SD25 |
Download
|
| ENGINE SPECIFICATIONS 1GM10 |
Download
|
| SPECIFICATIONS OF SD25 GEARBOX |
Download
|
| TECHNICAL DRAWINGS OF 1GM10 ENGINE WITH KM2P-1 GEARBOX |
Download
|
| TECHNICAL DRAWINGS OF 1GM10 ENGINE WITH SD25 GEARBOX |
Download
|
| WARRANTY HANDBOOK |
Download
|
