YD42

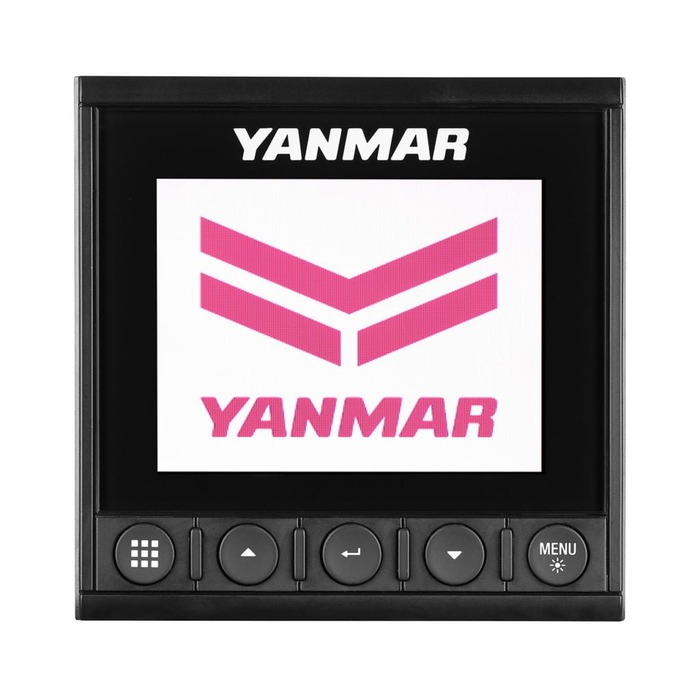

The YD42 Multi-Function Color Display is a smart, multi-purpose instrument featuring a compact full color display, modern glass styling, with the ability to read and display YANMAR engine alarm and diagnostic troubleshooting codes. View engine speed, engine load, oil pressure, coolant temperature, wind, speed, depth, AIS data and more at a glance.
YD42 main features:
- Compact, optically bonded 4.1-inch color display
- Modern, low-profile glass helm design
- Ultra-wide 170-degree viewing angle
- Offers 8 onboard languages
- Gateway functionality to allow engine data to be displayed on NMEA 2000 devices
- Display engine speed, oil pressure, coolant temperature, engine hours, engine load, and all YANMAR engine alarm and diagnostic troubleshooting codes
- Intuitive operation with waterproof silicon keys
- Single display for showing data of dual engine installations
- Easy installation with front-mount option
Price | Send inquiry |
---|
Documents
Installation manual | Download |
Operation manual | Download |
Product guide | Download |
Specification datasheet A4 | Download |
Specification datasheet LT | Download |

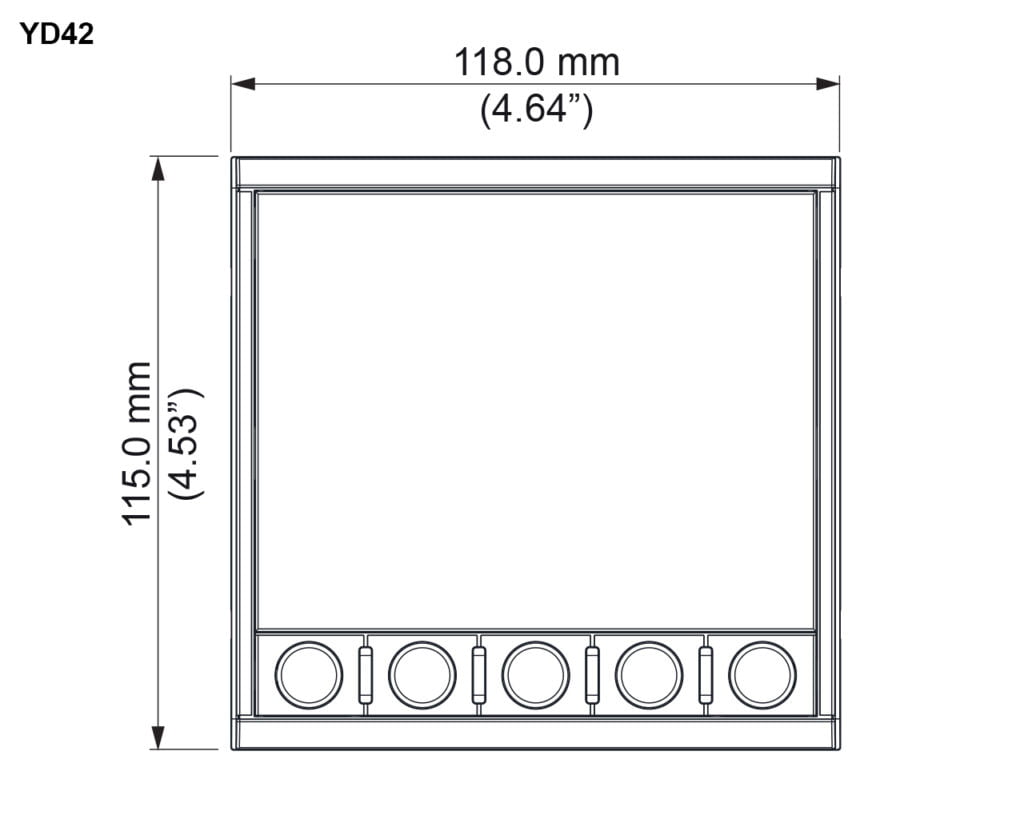

YD42 dimensions (front) | Download |

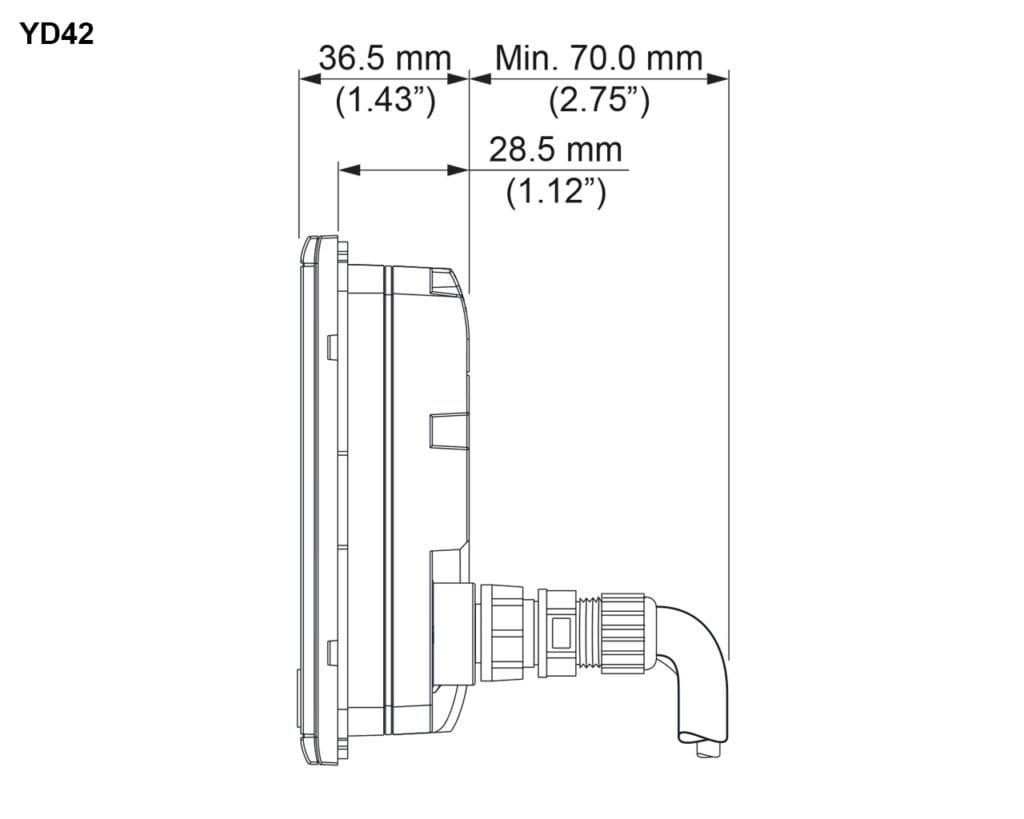

YD42 dimensions (side) | Download |
164100-51400 YD42 display - STP | Download |
164100-3041x A15 switch panel - STP | Download |
164100-51400 YD42 display template - PDF | Download |
164100-3041x A15 switch panel template - PDF | Download |
