B25 & C35

The B25 & C35 are YANMAR’s start/stop tachometer panels which are compatible with JH-CR and 4LV electronic YANMAR engines. These panels show basic parameters using traditional gauges and can show additional parameters, including Diagnostic Troubleshooting Codes (DTCs) in the smart tachometer window. The smart window can be programmed to show various other engine parameters as needed. These panels can also drive an optional fuel level gauge.

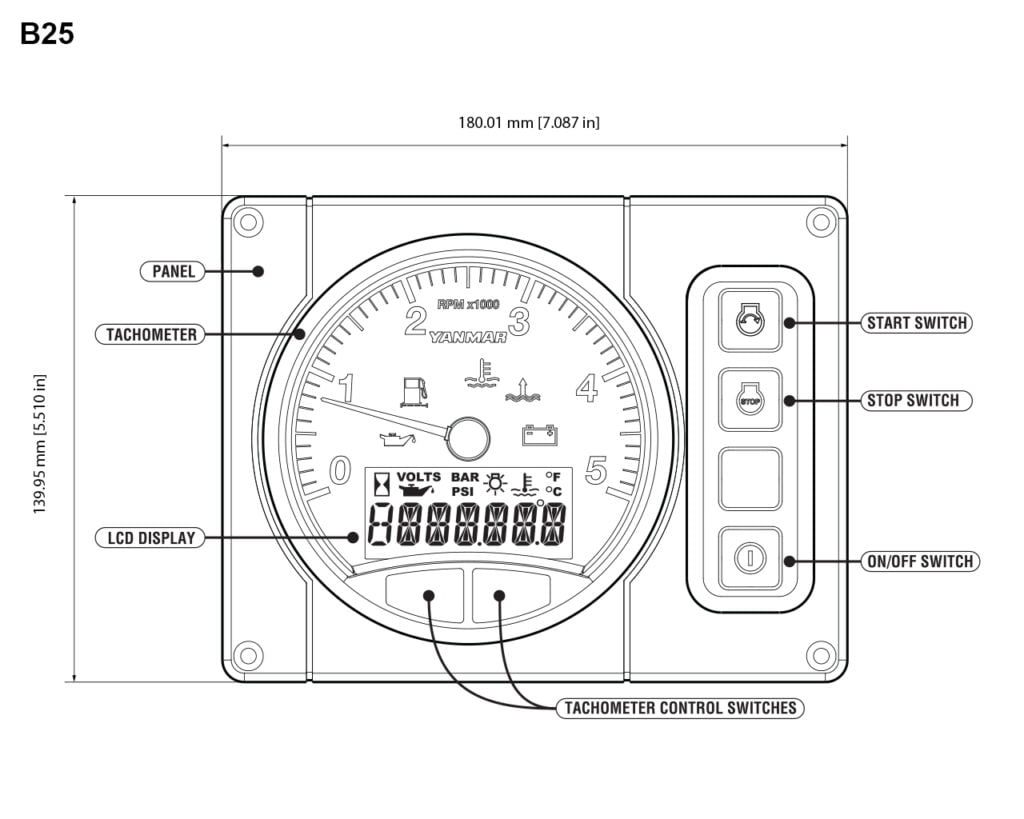

B Panel: Includes Tachometer only

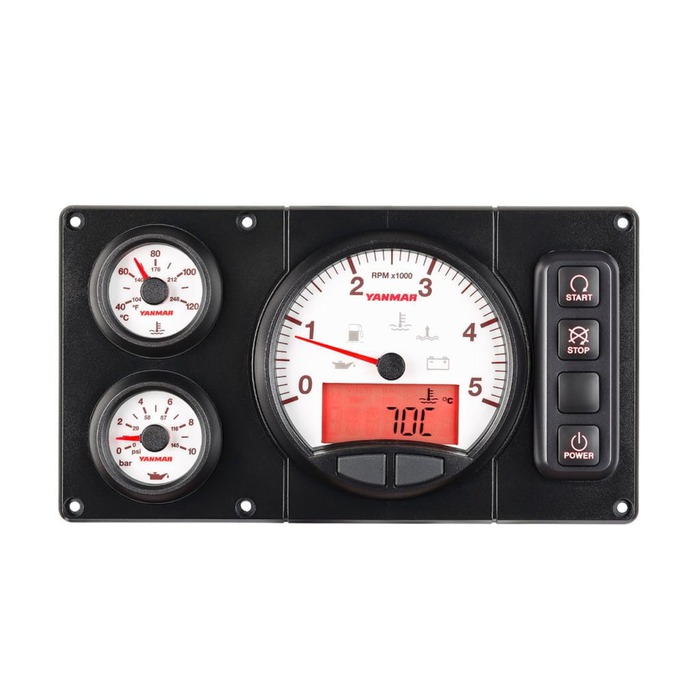

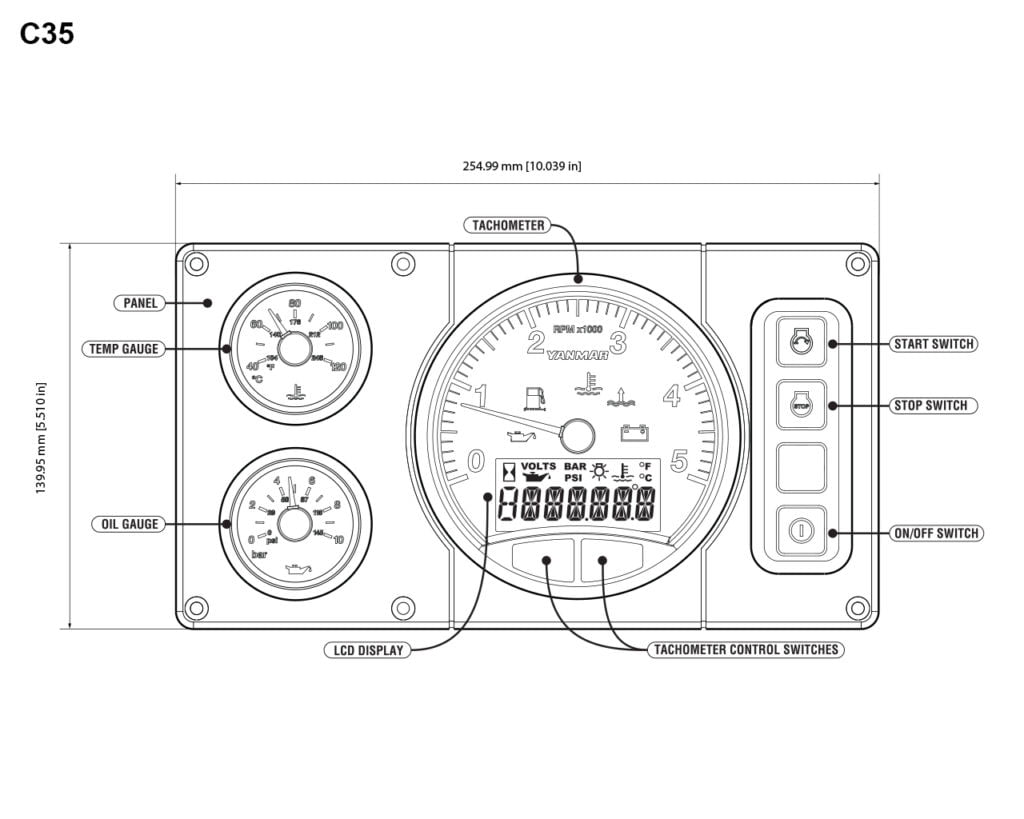

C Panel: Includes Tachometer, water temperature gauge, oil pressure gauge

Basic parameters shown:

•     Engine hours
•     Backlight
•     Battery voltage
•     Throttle Position
•     Engine Load
•     Fuel Rate
•     Intake Air Pressure
•     Fuel temperature
